Yuneec Typhoon G
$899.99
In stock
Product Details
Brand: Yuneec
The Typhoon for the GoPro® Enthusiast
A complete system that is factory assembled and test flown, the Typhoon G enables Go Pro® users to capture smooth and stable footage in the air as well as on the ground.
The new GB203 3-axis self-stablizing gimbal is designed especially for the GoPro® Hero3 and above.
It can be mounted on the Typhoon multicopter and on the SteadyGrip™ ground handle allowing users to capture impressive footage in the air and on the ground.
The SteadyGrip™ uses up to a 6.4 inch mobile device as a display and features camera pitch control on-the-go. Real time image transmission is achieved with the included MK58 digital video downlink module and can be viewed on the ST10+ ground station.
Typhoon G made for the GoPro® user comes ready-to-fly in a color box with a ST10+ radio transmitter,
handheld SteadyGrip™,GB203 gimbal and MK58 digital video downlink.
The Typhoon G is distributed directly from our Ontario, California location where technical support, spare parts and customer service can also be accessed for further convenience.
CAPTURE THE FUTURE
- Up to 25 Minutes Flight time
- Personal Ground Station with built-in touchscreen
- 3-axis precision gimbal for GoPro®
- Up to 400m direct digital video down link
- Dedicated App compatible with GoPro®
- SteadyGrip for GoPro® to capture stable footage on the ground
IN THE BOX:
- Typhoon aircraft
- ST10+ ground station
- CGO Steadygrip™
- GB203 gimbal (*GoPro camera NOT included)
- MK58 Digital Video Downlink Module
- 1 LiPo Battery
- 2 sets of Propellers
- AC to DC adapter
- Balancing charger
- USB adapter/charger and cable
- Car charger
- USB interface/programmer
- Sun shield
- Neck strap
- Prop installation tool
- Battery door latch / lock set
- Tweezer
- Quickstart guide
- LED status, calibration, and warning sheets
SPECIFICATIONS:
Typhoon Aircraft-

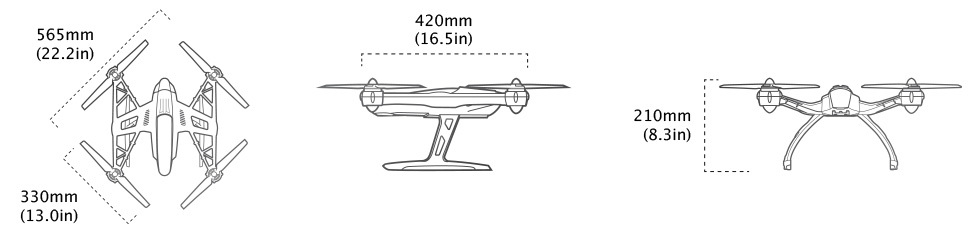

Dimensions:
| Flight Time | up to 25 minutes |
|---|---|
| Weight with Battery and Payload | 60.0 oz (1700g) |
| Weight without Battery and Payload | 40.0 oz (1130g) |
| Battery | 5400mAh 3S 11.1V LiPo (included) |
| Charger | 3S 11.1V LiPo DC Balancing Smart Charger with AC Adapter (included) |
| Transmitter | 10-channel 2.4GHz with 5.8GHz video downlink (included) |
| 3 Flight Modes | Smart (Follow Me and Watch Me), Angle and Home |
| Maximum Flying Height | Default 122m (400ft) above Ground Level (Adjustable via the Typhoon GUI) |
| Maximum Rotation Rate | 65°/s |
| Maximum Roll Angle | 35° |
| Operating Temperature Range | −5°C to 80°C |
| Radio Control Frequency Band | 2.4GHz |
| Max. Descent Speed | 2m/s |
| Max. Flight Speed | 8m/s |
GB203 Gimbal-

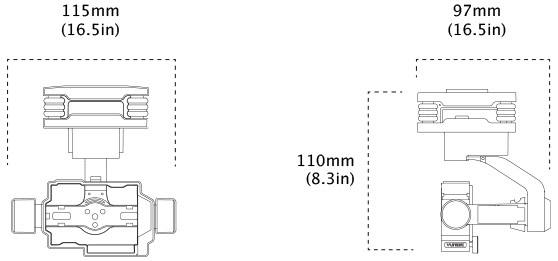

Dimensions:
| Weight | 8.1oz (230g) |
|---|---|
| Focusing System | +75° ∼ −120° |
| Field of View | −45° ∼ +45° |
| Video Transmission Range | −45° ∼ +45° |
MK58 Digital Video Downlink-

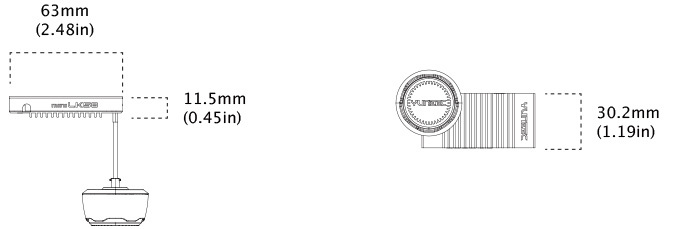

Dimensions (without antenna):
| Weight | 1.27oz (36g) |
|---|---|
| Compatible Camera | GoPro® Hero 4 Black |
| Working Voltage | 5V (±0.5V) |
| Working Current | 1A |
| Video Transmission Range | 400 meters |
Personal Ground Station-

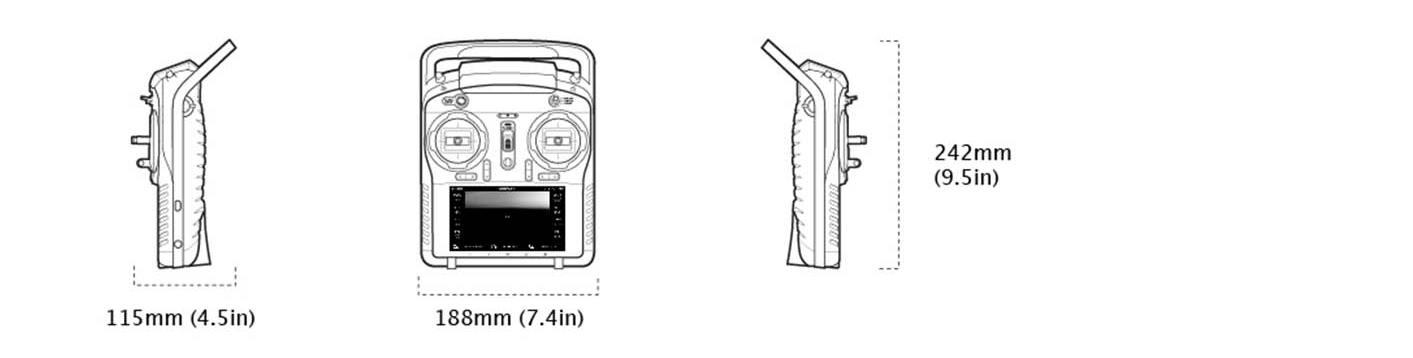

Dimensions:
| Type | ST10+ |
|---|---|
| Operating System | Android™ |
| Number of Channels | 10 |
| Control Transmission Range (Optimum Conditions) | FCC Compliance: Up to 800m (2624.67 ft) CE Compliance: Up to 400m (1312.34 ft) Warning: You Must Follow Local Laws and Maintain Visual Line of Sight of Aircraft at All Times |
| Robust Radio Control Modulation | Yuneec Protocol |
| Video Link Frequency Band | 5.8GHz |
| Video Transmission Range (Optimum Conditions) | FCC Compliance: Up to 600m (1968.5 ft) CE Compliance: Up to 300m (984.252 ft) Warning: You Must Follow Local Laws and Maintain Visual Line of Sight of Aircraft at All Times |
| Flight Systems Telemetry Data On Screen Display | Yes |
| LED Backlit LCD Screen | Capacitive Multi-touch 5.5″ |
| Tactile (Vibrating) and Audible Feedback | Yes |
| Built-in LiPo Battery Voltage / Capacity | 3.6V/5200mAh 18.72Wh |
| Screen Resolution | 854 × 480px |
| Camera Settings | White balance, light exposure, ISO, shutter speed, video resolution, FPS, record video, take pictures |
CGO SteadyGrip V3:
Dimensions:
| Weight (without camera and gimbal) | 13.9 oz (395g) |
|---|---|
| Compatible camera | CGO2GB / CGO2+ / CGO3 / GoPro Hero4 Black with GB203 Gimbal |
GOPRO, HERO, the GOPRO logo, and the GoPro Be a Hero logo are trademarks or registered trademarks of GoPro, Inc.
